Planmeca Viso is the flagship CBCT unit. It is an ideal combination of premium image quality and high-end usability. The unit is an impressive step forward in the evolution of cone beam imaging. Planmeca Viso G7, volume sizes can be adjusted freely between 3x3 and 30x30.

Imaging for all clinical needs
Planmeca Viso offers a wide selection of volumes to cover all clinical needs - from a single tooth to a full skull. The unit's 3D sensor is also fully capable of 2D imaging.

Live virtual FOV positioning
Patient positioning is done directly from the Planmeca Viso’s control panel utilising integrated cameras and a live patient view. You can see the patient live from the control panel for flexible and exact FOV positioning. The volume size can also be adjusted freely.

Improved Planmeca ProFace photos
Planmeca Viso has introduced a new way of capturing Planmeca ProFace facial photos. The unit’s sensor has four built-in cameras and LED light strips for capturing highly detailed 3D photographs. You can combine them with intraoral scans and CBCT images of your patient to enrich 3D treatment plans – creating a virtual patient.

Intelligent patient support
Planmeca Viso’s occipital support provides stability without compromising patient comfort. The new support does not cover a patient’s ears in a 3D face photograph and can also be used without the chin cup thanks to the Planmeca CALM movement artifact correction algorithm.

Movement artifact correction
Our intelligent Planmeca CALM movement correction algorithm is excellent for imaging patients who have a difficult time remaining completely still. It eliminates the need for retakes by cancelling the effects of patient movement.

Ultra low dose imaging
All our CBCT units offer the unique Planmeca Ultra Low Dose imaging protocol. It allows clinicians to acquire 3D images at significantly lower effective patient doses without a statistical reduction in image quality.

Cutting edge endodontic imaging
Noise is often inherent to endodontic imaging due to the high resolution required to capture small details. Our new 3D endodontic imaging mode for Planmeca Viso units combats this issue and allows capturing clear and smooth CBCT images that are perfect for endodontics. In addition to new unit deliveries, the new imaging mode is available for existing units with a software update.

120 kV tube voltage
Planmeca Viso’s 120 kV tube voltage option enables optimised quality for challenging imaging cases – reducing artifacts and ensuring great image quality also when imaging patients with larger heads.

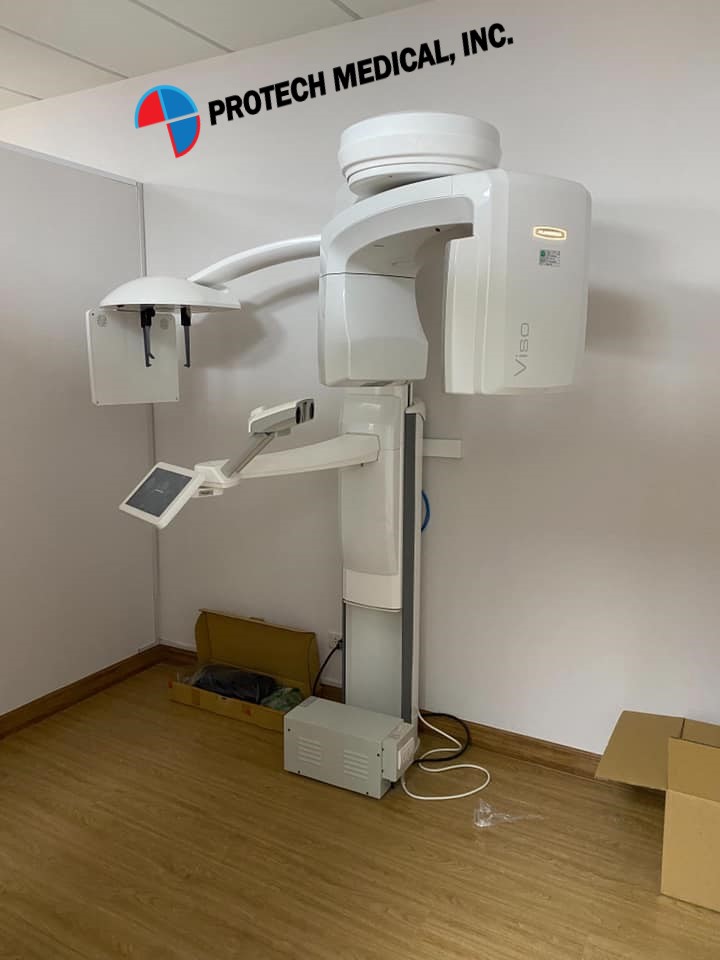

Cephalostat option
Planmeca Viso can be equipped with a Planmeca ProCeph one-shot cephalostat. One-shot ceph acquisition takes less than a second and eliminates the risk of patient movement. It is particularly beneficial when imaging young children and other patients that have a tendency to move during imaging.

Specifications:

Technical data
- Anode voltage : 60–120 kV
- Anode current : 1–16 mA
- Focal spot : 0.5 mm, fixed anode
- Image detector : Flat panel
- Image acquisition : 200 / 360 degree rotation
- Scan time : 1–36 s
- Typical reconstruction time : 2–55 s

Maximum volume sizes
- Volume size [cm]
- Maximum volume with a single scan : Ø30 x 20
- Maximum volume with multiple vertical scans : Ø30 x 30

Dental programmes
- Volume size [cm]
- Tooth : Ø3 x 3 – Ø6 x 6
- Teeth : Ø7 x 3 – Ø12 x 10
- Jaw : Ø13 x 3 – Ø17 x 17
- Face : Ø14 x 12 – Ø30 x 20- Skull : Ø20 x 22 – Ø30 x 30

ENT (Ear, Nose, Throat) programmes

Volume size [cm]
- Nose : Ø7 x 5 – 12 x 10
- Sinus : Ø10 x 10 – 17 x 20
- Middle ear : Ø3 x 3 – 6 x 6
- Temporal bone : Ø7 x 5 – 12 x 10
- Airways : Ø8 x 8 – 10 x 14
- Vertebrae : Ø8 x 8 – 10 x 14

Physical space requirements
- Width : 155 cm (61 in.)
- Depth : 152 cm (60 in.)
- Height : 240 cm (95 in.)
- Weight : 165 kg (lbs 364)

With cephalostat:
- Width : 216 cm (85 in.)
- Depth : 154 cm (61 in.)
- Height : 180 cm (95 in.)
- Weight : 180 kg (lbs 397)
