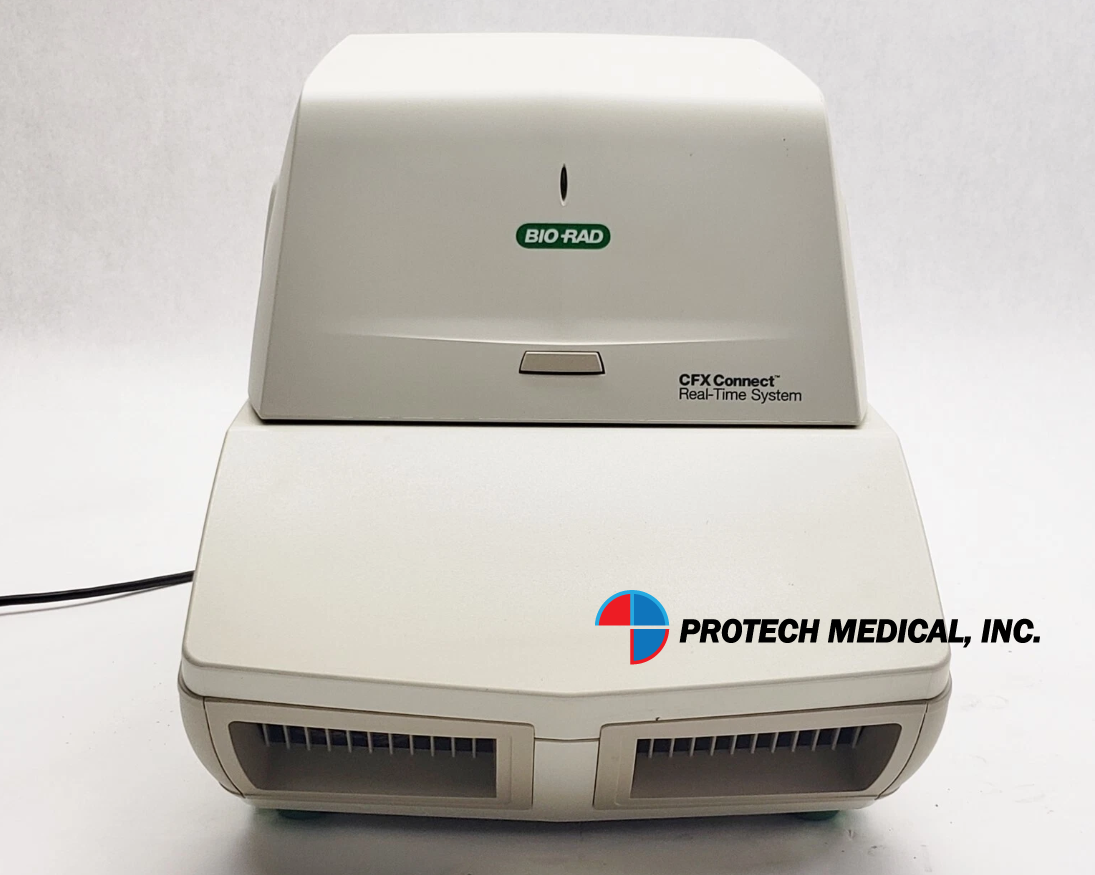

The CFX Connect Real-Time PCR Detection System offers two-target analysis, excellent thermal cycler specifications, and the same reliable performance as the CFX96 Touch Real-Time PCR Detection System. The system incorporates innovative optical technologies with powerful software to provide maximal reliability and efficiency for all your real-time PCR needs.

CFX Connect real-time PCR detection system offers two-target analysis, excellent thermal cycler specifications, and the same reliable performance as the CFX96 Touch real-time PCR detection system. The system incorporates innovative optical technologies with powerful software to maximize reliability and efficiency for all your real-time PCR needs.

Features and Benefits:
- Easy startup — obtain great results right away with factory-calibrated dyes, quick setup, and intuitive software
- Effortless optimization — save time and reduce costs by optimizing assays in a single run using the thermal gradient
- Powerful data analysis tools — quickly and accurately validate and analyze data with the advanced analysis modules of CFX Maestro Software
- Accelerated publication submission — include MIQE annotations and generate RDML files using Biogazelle's qbase+ Software

Specifications:
- Chassis : CFX Connect
- Maximum ramp rate, °C/sec : 5
- Average ramp rate, °C/sec : 3.3
- Heating and cooling method : Peltier
- Lid, °C : Heats up to 105

Temperature
- Range, °C : 0–100
- Accuracy, °C : ±0.2 of programmed target at 90°C
- Uniformity, °C : ±0.4 well-to-well within 10 sec of arrival at 90°C

Gradient
- Operational range, °C : 30–100
- Programmable span, °C : 1–24

Optical Detection
- Excitation : 3 filtered LEDs
- Detection : 3 filtered photodiodes
- Range of excitation/emission wavelengths, nm : 450–580
- Sensitivity : Detects 1 copy of target sequence in human genomic DNA
- Dynamic range : 10 orders of magnitude

Scan Time
- All channels, sec : 12
- FAM/SYBR Green only, sec : 3

Software
- Operating systems : Windows 7, Windows 8, Windows 10
- Multiplex analysis : Up to 2 targets per well

System
- Licensed for real-time PCR : Yes
- Sample capacity, wells : 96
- Sample size, µl : 1–50 (10–25 recommended)
- Communication interface : USB 2.0
- Electrical approvals : IEC, CE
- Dimensions (W x L x H), cm/in : 33 x 46 x 36/13 x 18 x 14
- Weight, kg/lb : 21/47

Package includes:
- Bio-Rad CFX Connect Real-Time PCR
- Power Cord
- Operator Manual
- Voltage Regulator
- Battery Backup UPS
- CFX Manager Software
- License For Qbase Software
- Communication Cable
- Reagents
- Warranty
