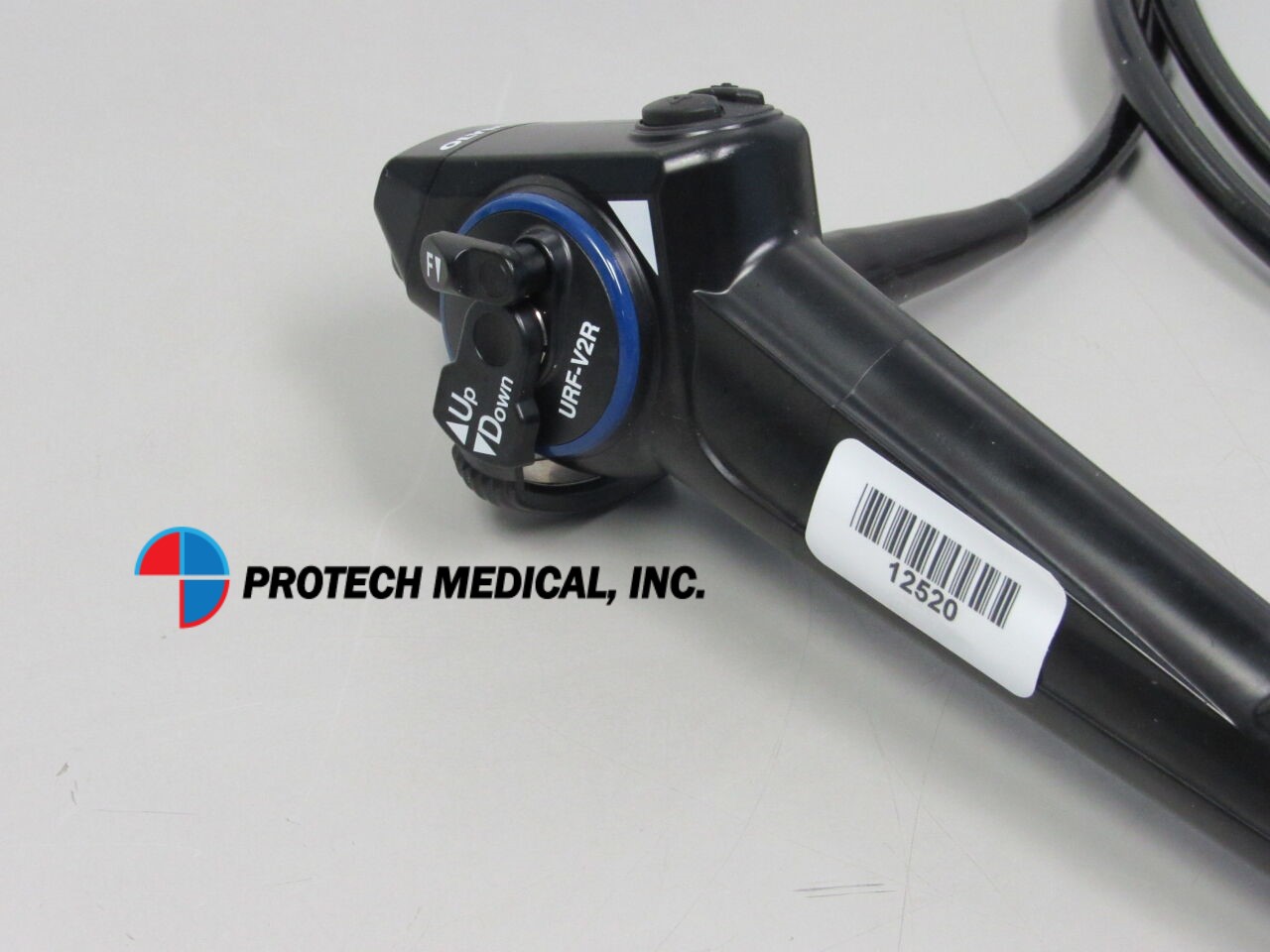

Olympus URF-V2R | Flexible Digital Video Ureteroscope

The Olympus URF-V2R Flexible Video Ureteroscope is the world’s smallest flexible video ureteroscope, featuring an ultra-slim 8.4 Fr insertion tube and advanced chip-on-the-tip micromini CCD for high-resolution, crystal-clear imaging. Designed for optimal performance in stone management and urothelial tumor detection, this ureteroscope integrates innovative Narrow Band Imaging (NBI) technology to enhance mucosal and vascular detail without dyes or drugs. The stiff, torque-stable shaft and 275° up/down angulation ensure superior maneuverability and access to all renal calyces. With a 670 mm working length, 3.6 Fr (1.2 mm) instrument channel, and ergonomic insertion tube rotation, the URF-V2R maximizes control and surgeon comfort, making it ideal for advanced endourological procedures and lithotripsy in even the tightest ureters.

Benefits:
- Chip-on-the-tip micromini CCD ensures significantly high image quality and produces a large image, which supports detailed and precise observation
- Narrow Band Imaging (NBI) enhances visualization of the capillary network and mucosal morphology.
- Increased up/down angulation of 275 degrees, combined with higher flexibility of the distal end, greatly improves access to targets in the renal calyces.

Specifications:
Optical System:
- Field of view 80 degrees
- Direction of view Forward viewing
- Depth of field 1.5-50 mm

Insertion Tube:
- Distal end outer diameter 8.5 Fr
- Insertion tube outer diameter 8.4 Fr (2.8 mm)
- Working length 670 mm

Instrument Channel:
- Inner channel diameter 3.6 Fr (1.2 mm)

Bending Section:
- Angulation range Up 275 / Down 275 degrees
- Total Length : 980 mm

Package includes:
Case and Biopsy Port
