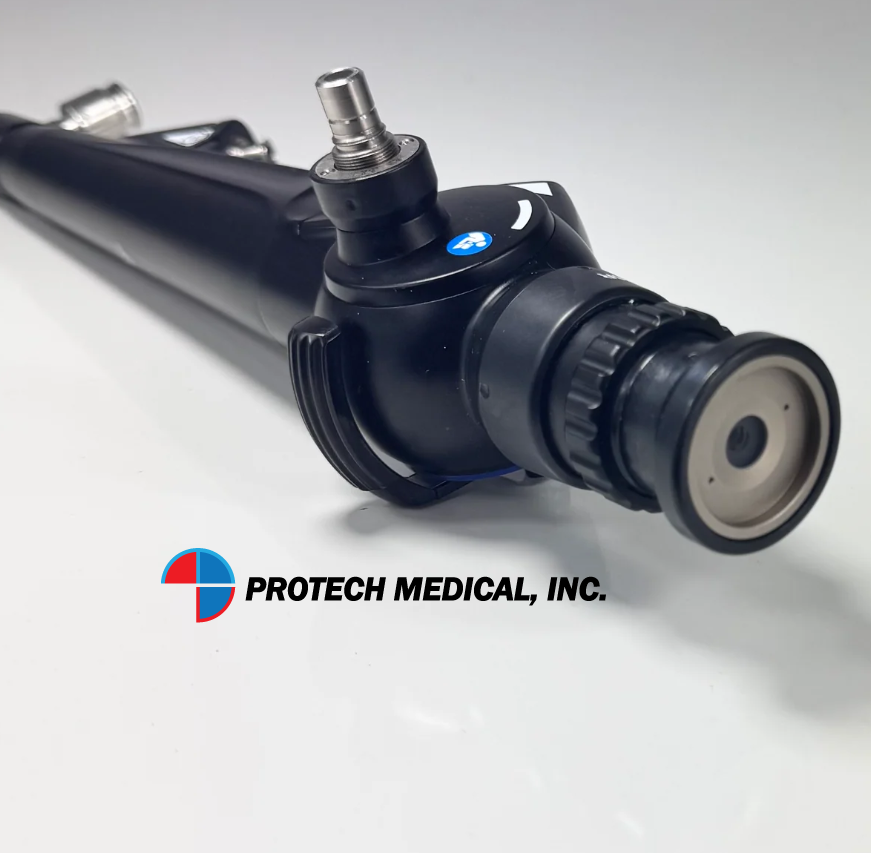

Olympus URF-P6R | Superslim Flexible Fiberoptic Ureteroscope

The Olympus URF-P6R is a superslim, flexible fiberoptic ureteroscope designed for advanced access and visualization within the ureter, kidney, and biliary tract. Its 7.95 Fr shaft with a 4.9 Fr EvolutionTip permits smooth insertion into smaller ureters, making it particularly suitable for laser lithotripsy and complex diagnostic or therapeutic urological procedures. The stiffer, torque-stable shaft and wide angulation capability enhance maneuverability and control, while a high-quality imaging system with an integrated moiré filter ensures clear visualization even in narrow anatomy.

Features:
- Superslim Shaft: 7.95 Fr (2.65 mm outer diameter) for easy access to small ureters.
- EvolutionTip: 4.9 Fr distal tip design for smooth, atraumatic scope advancement.
- Flexible Angulation: 275° up and 275° down tip deflection for comprehensive access to renal calyces.
- Working Channel: 3.6 Fr (1.2 mm) channel accommodates instruments for biopsy or stone retrieval.
- Working Length: 670 mm, suitable for a wide range of adult and pediatric urological applications.
- Image Quality: Integrated moiré filter reduces image distortion for sharp, clear visuals.
- Field of View: 90° wide field with 0° forward direction for detailed anatomical visualization.
- Depth of Field: 2–50 mm, ensuring both close-up and more distant imaging.
- Stiff, Torque-Stable Shaft: Provides improved insertion, stability, and tip control compared to previous generations.
- Compatible Accessories: Works with 9.5–12 Fr access sheaths, leaving space for irrigation and stone fragment removal.

Specifications:
- Direction of view - 0° Forward
- Angle of view - 90°
- Tip deflection - 275° up / 275° down
- Tip diameter - 1.65 mm- Working shaft diameter - 2.65 mm
- Biopsy channel diameter - 1.2 mm
- Working shaft length - 670 mm
- Optional Luer Tee Port
- Actual Dimensions: 40" long
- Shipping Dimensions: 12" x 24" x 6"
- Weight: 15 oz.
