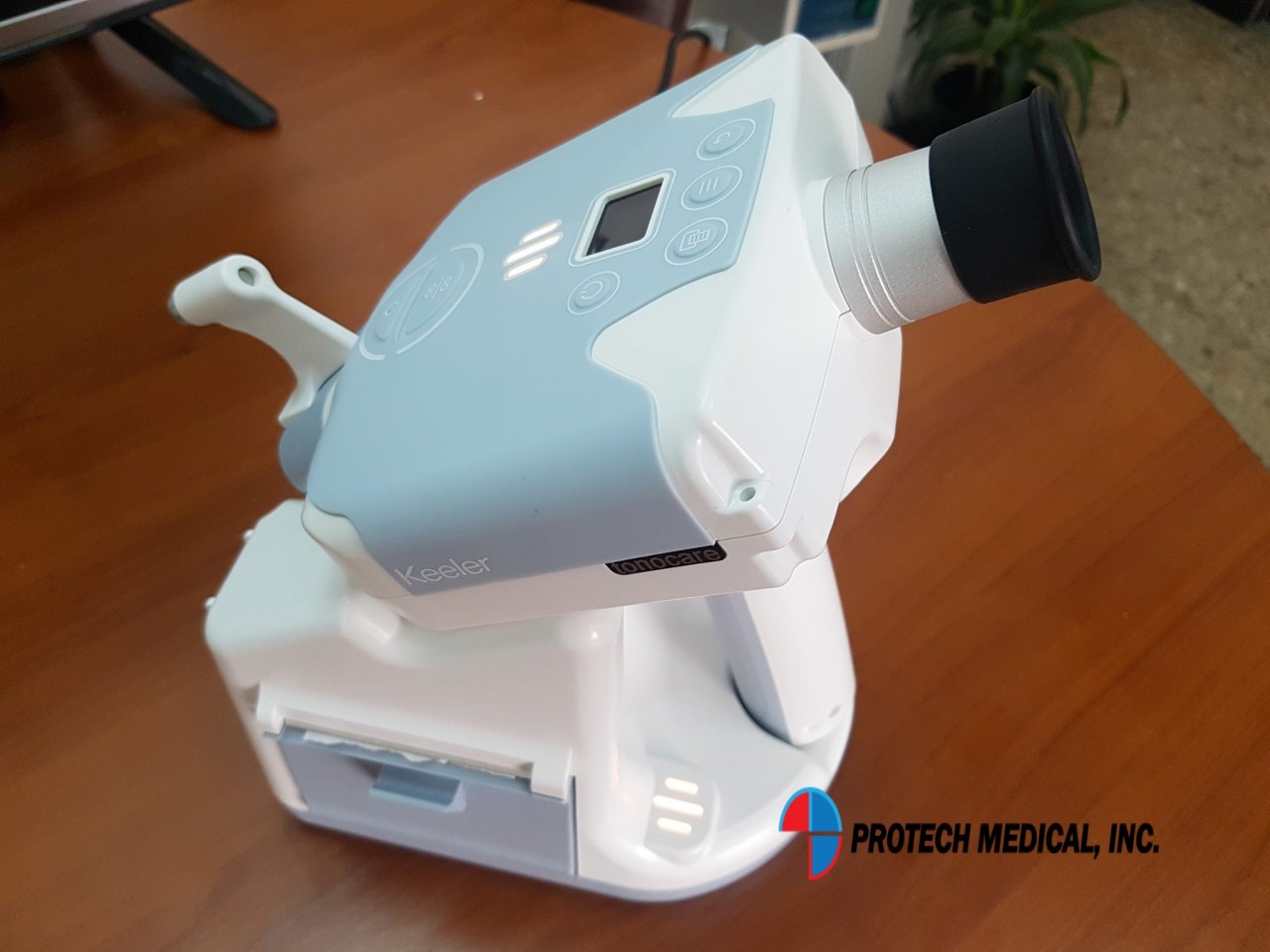

The TonoCare is designed with patient comfort in mind, is easy to use, and gives consistently fast, accurate and reliable readings. The highly portable unit allows measurements to be taken wherever the patient is most comfortable; whatever environment they are in. The sleek product profile means the clinician can maintain visual contact with the patient at all times, enabling them to reassure the patient throughout the measurement process.

Features:
- Usage cost
The Tonocare makes use of no consumables which means no sterile consumables are required, keeping ongoing costs to a minimum.

- Accuracy
The Tonocare was clinically compared to the GAT and testing showed that the Tonocare is comparable, consistent and repeatable.

- Ease of use
The Tonocare makes use of an intuitive head up display which enables you to be in the right position during every measurement to ensure accurate measurements.

- Speed of use
Tonocare is ready to use in less than 10 seconds after being switched on; readings for both eyes can be achieved in 30 seconds.

- Patient comfort
Keeler’s most portable NCT allows measurements to be taken wherever the patient is most comfortable; whatever environment they are in.

Specifications:
- TonoCare System
- Measurement Range : 5mmHg to 50mmHg
- Measurement Distance : ~11mm from eye
- Equipment Standard : Conforms to BS EN ISO 8612

Electrical:
- Input Voltage Range : 100-240V (50/60Hz)
- Power Rating : 4.6 – 7.4VA
- PC Interface : USB

Classification & Safety Standards:
- Complies with : EN60601-1, UL60601-1
- Equipment Classification : Class II
- Mode of Operation : Continuous
- Protection against Ingress IPX0 : (Hand unit and Docking Station)

Environmental Conditions:
- Operating Temperature : +10°C – +35°C
- Storage Temperature : -10°C – +55°C
- Relative Humidity : 10% to 95% (storage)
                               30% to 90% (operating)
- Atmospheric Pressure : 700hPa to 1060hPa (storage)
                                     800hPa to 1060hPa (operating)

Hand unit Dimensions:
- Width : 136mm- Depth : 206mm
- Height : 220mm - Weight : 1.0kg

Docking Station Dimensions:
- Width : 155mm
- Depth : 183mm
- Height : 153mm
- Weight : 0.725kg

Package includes:
- Tonocare
- Docking station
- Detachable headrest
- Power supply kit
- USB cable
- Instruction USB
- Rubber eyepiece
- Wall mount kit
