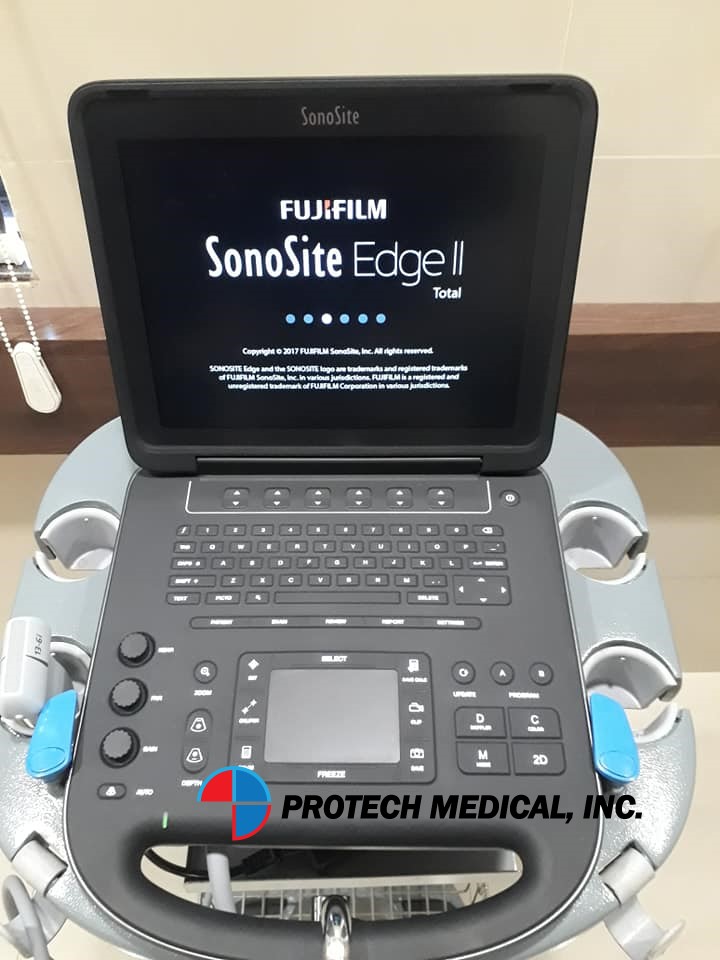

Sonosite Edge II ultrasound machine offers an enhanced imaging experience while staying true to our design pillars of durability, reliability, and ease of use.

Benefits:
- Portable, can be used on or off the optional Edge Stand
- Wide-angle display with anti-reflection coating provides a clear view regardless of ambient lighting conditions
- Simplified interface for intuitive access to frequently used functions. Trackpad with select button provides efficient navigation
- Low-profile buttons with snap dome technology for easy cleaning and tactile feedback
- Silicone keypad is sealed to the edge to inhibit liquid ingress and disinfect with ease
- Ready to scan from cold start in less than 25 seconds
- Optional Armored Cable Technology protects transducer cables from potential accidental damage

OPTIMIZED IMAGING EXPERIENCE
DirectClear Technology is a novel, patent-pending process that elevates transducer performance:
- Improved penetration and contrast resolution: Unlike conventional SonoSite transducers, a more efficient material has been embedded into the design that allows for the generation of more acoustic signal. In parallel, a reflective layer has been added to reduce the loss of this signal, as it is transmitted into the patient.
- Sharpened detail resolution: An additional layer has been added to provide a better acoustic match between the transducer and the patient, increasing the ability to resolve small structures and aid in your diagnostic confidence.

ELEVATED COLOR SENSITIVITY
Through a dualflex and thin lens design, combined with new advancements in image optimization, the HFL38xi was enhanced to increase penetration, clarity and color sensitivity. You can now better visualize nerves and vessels, whether it be for procedural guidance or flow analysis.

TAKING TRANSDUCER DURABILITY TO THE ARMORED LEVEL
How often do transducer cables get rolled over, stepped on or twisted? Talking to our customers, the response is “all the time,” “too often to count,” or simply “a lot.”With an embedded metal jacket, armored cables protect your transducers from these common scenarios. By safeguarding electrical connections inside, armored cables help maintain image quality over the life of your transducer.

Specifications:
- System weight : 9.21 lbs/4.18 kg with battery
- Dimensions : 12.8" x 12.1" x 2.5"/ 32.6 cm x 30.7 cm x 6.4 cm (L x W x H)
- Display : 12.1"/30.7 cm diagonal LCD (NTSC or PAL) with chemically-etched glass layer
- Viewing Angles : 85 degrees up/down/left/right- Architecture : All-digital broadband
- Dynamic range : Up to 165 dB- Gray scale : 256 shades
- HIPAA compliance : Comprehensive tool set

TRANSDUCERS:
- L38xi 10-5 MHz LinearApplications: lung, nerve, small parts, arterial, venousScan depth: 9 cm
- HFL38xi 13-6 MHz LinearApplications: breast, lung, musculoskeletal, nerve, ophthalmic, small parts, arterial, venousScan depth: 6 cm
- HFL50x 15-6 MHz LinearApplications: breast, musculoskeletal, nerve, small partsScan depth: 6 cm
- L25x 13-6 MHz LinearApplications: lung, musculoskeletal, nerve, superficial, arterial, venous, ophthalmicScan depth: 6 cm
- C11x 8-5 MHz CurvedApplications: abdominal, neonatal, nerve, arterial, venous, cardiology (vet)Scan depth: 13.5 cm
- rC60xi 5-2 MHz CurvedApplications: abdominal, musculoskeletal, nerve, ob, gynScan depth: 30 cm
- ICTx 8-5 MHz CurvedApplications: ob, gynScan depth: 13 cm
- rP19x 5-1 MHz PhasedApplications: abdominal, cardiology, lung, ob, orbital, TCDScan depth: 35 cm
- P10x 8-4 MHz PhasedApplications: ped. abdominal, ped. cardiology, neonatal headScan depth: 14 cm
- HSL25x 13-6 MHz LinearApplications: lung, musculoskeletal, nerve, superficial, arterial, venous, ophthalmicScan depth: 6 cm
- TEExi 8-3 MHz MultiApplications: adult cardiology, multiplane transesophageal 180° rotation of the imaging plane, providing a 360° field of viewScan depth: 18 cm
- L52x (Vet) 10-5 MHz LinearApplications: musculoskeletal, ob, arterialScan depth: 15 cm
- C35x 8-3 MHz CurvedApplications: abdominal, musculoskeletal, nerve, ob, spineScan depth: 15 cm
- C8x 8-5 MHz CurvedApplications: prostateScan depth: 11.5 cm
- P11x 10-5 MHz PhasedApplications: venous, vascularScan depth: 12 cm

Package includes:
- SonoSite EDGE II unit
- Probes- Ac Adapter
- Battery
- Carrying Case
- Footswitch
- EDGE STAND / Docing Station
- Warranty Card
