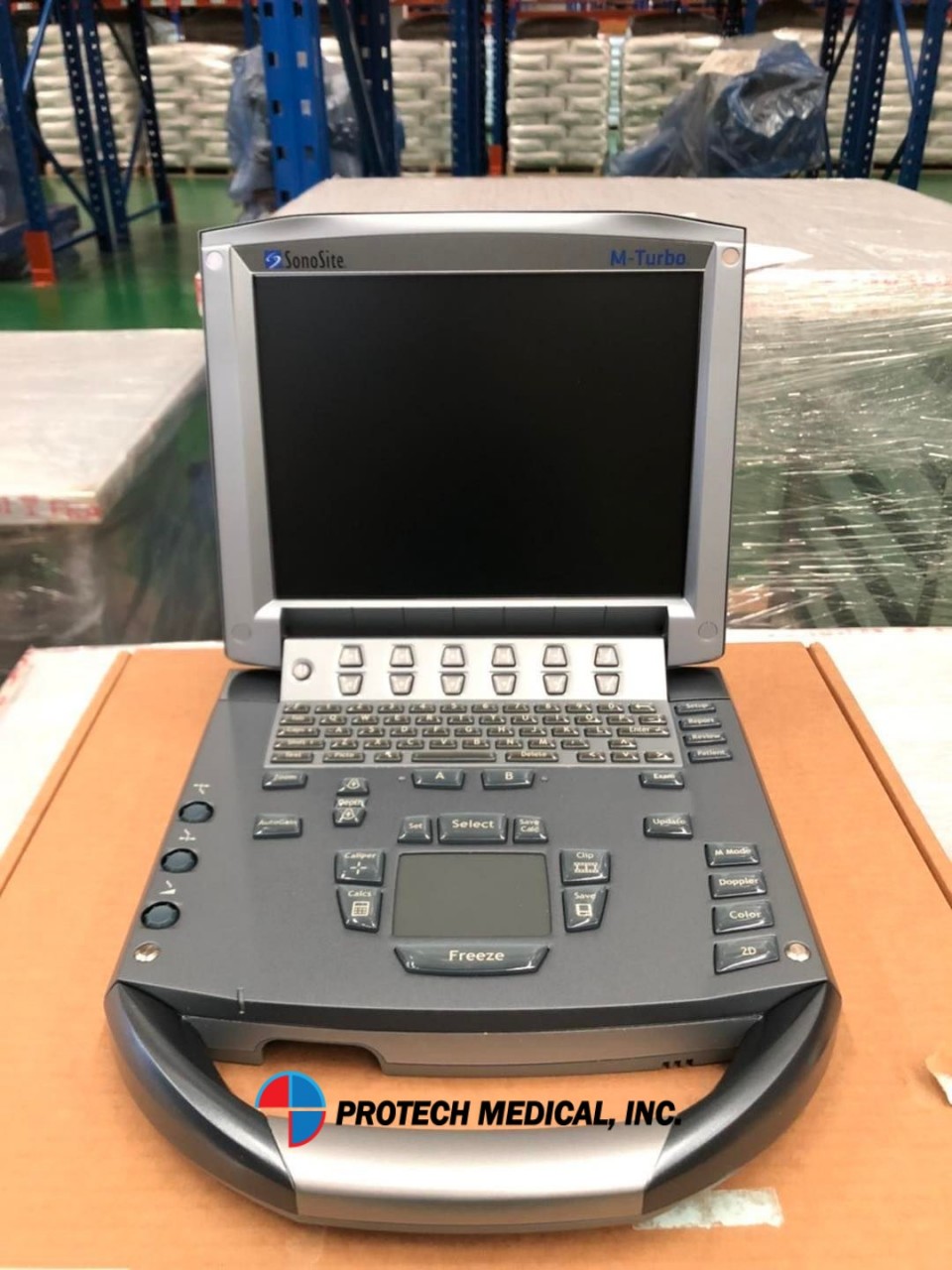

SonoSite M-TURBO is used worldwide from remote hospitals to veterinary clinics to community health centers, Sonosite M-Turbo can be used for a wide range of diagnostic and procedural applications. Engineered for portability and unmatched durability, it’s the preferred Sonosite ultrasound system for global aid organizations.

Benefits
- Rugged design and built to U.S. military specifications for demanding environments
- Lid closes to protect the monitor and keypad
- Easily portable, weighing in at just 7.5 lbs (3.4kg) with battery
- Ready when you are and boots up in less than 20 seconds
- Optional H-Universal Stand, Triple Transducer Connect, and PowerPark accessories

Our most versatile system for abdominal, nerve, vascular, cardiac, venous access, pelvic, and superficial imaging. The M-Turbo® ultrasound system gives you striking image quality with sharp contrast resolution and clear tissue delineation. This ultrasound equipment lets you visualize detail, improving your ability to differentiate structures, vessels and pathology. Because the more you can see, the more you can do for your patients.

INCREASED COLOR PERFORMANCE
The M-Turbo ultrasound system offers striking image quality. Proprietary algorithms optimize multiple imagingparameters so you get essential information quickly and easily.

TURBO TECHNOLOGY
SonoADAPT Tissue Optimization – eliminating complicated manipulation of multiple controls.SonoHD Imaging Technology – reducing speckle noise and other image artifacts while preserving and sharpening tissue information.SonoMB Multi-beam Imaging – increasing resolution of small structures and enhancing border delineation.Advanced Needle Visualization – aiding needle visualization while maintaining striking image quality of the target and surrounding anatomy.ColorHD Technology – increasing color performance, sensitivity and frame rates for more diagnostic information.Point-of-Care Applications – Anesthesia, Critical Care, Cardiology, Cardiovascular Disease Management, Emergency Medicine, Musculoskeletal, OB/Gyn, Radiology, Vascular, Surgery, Vet Imaging, Women’s Health.

AT A GLANCE
- Premium image quality
- Drop tested at 3 feet/91.4 cm
- Splash resistant user interface
- Quick boot-up time
- Easy to operate
- Battery-powered and wireless capabilities for true mobility
- Magnesium case for lightweight strength
- Backlit keyboard is easier on the eyes

Specifications:
- System weight : 7.5 lbs./3.4 kg with battery
- Dimensions : 11.9” x 10.8” x 3.1” / 30.2 cm x 27.4 cm x 7.9 cm (L x W x H)
- Display : 10.4”/26.4 cm diagonal LCD (NTSC or PAL)
- Architecture : All-digital broadband
- Dynamic range : Up to 165 dB- Gray scale : 256 shades
- HIPAA compliance : Comprehensive tool set

TRANSDUCERS:
- L38xi 10-5 MHz LinearApplications: lung, nerve, small parts, arterial, venousScan depth: 9 cm
- HFL38x 13-6 MHz LinearApplications: breast, CIMT, musculoskeletal, nerve, small parts, vascular, venousScan depth: 6 cm
- HFL50x 15-6 MHz LinearApplications: breast, musculoskeletal, nerve, small partsScan depth: 6 cm
- L25x 13-6 MHz LinearApplications: lung, musculoskeletal, nerve, superficial, arterial, venous, ophthalmicScan depth: 6 cm
- C11x 8-5 MHz CurvedApplications: abdominal, neonatal, nerve, arterial, venous, cardiology (vet)Scan depth: 13 cm
- C60xi 5-2 MHz CurvedApplications: abdominal, musculoskeletal, nerve, gynecology, obstetricsScan depth: 30 cm
- ICTx 8-5 MHz CurvedApplications: gynecology, obstetricsScan depth: 13 cm
- P21x 5-1 MHz PhasedApplications: abdominal, cardiology, obstetrics, orbital, TCDScan depth: 35 cm
- P10x 8-4 MHz PhasedApplications: pediatric abdominal, pediatric cardiology, neonatal head Scan depth: 14 cm
- SLAx 13-6 MHz LinearApplications: musculoskeletal, nerve, superficial, vascular, venousScan depth: 6 cm
- TEExi 8-3 MHz MultiApplications: adult cardiology, multiplane transesophageal 180° rotation of the imaging plane, providing a 360° field of viewScan depth: 18 cm
- C8x 8-5 MHz CurvedApplications: prostateScan depth: 11.5 cm
