Powered by ImageSense. BladderScan Prime Plus is a portable bladder ultrasound device that delivers accuracy with improved workflow — and ensures fewer errors when measuring the volume of urine in the bladder. It gives clinicians the certainty needed to make decisions that help prevent infection, in every scan and on every patient.

GROUNDBREAKING ACCURACY
Scanning accuracy results when technology and human factors align.
Prime Plus offers pre- and post-scan aim-assist features as clinical guidance to optimize performance.
- ImageSenseTM deep learning technology automatically calculates 3D volume
- Enhanced EdgeScan off-center scan alerts
- Pioneering pubic bone interference indicator- 12 B-mode slice review

STREAMLINED WORKFLOW
The Prime PlusTM user interface makes your work easier and faster than ever.
- Time saving, one-step automated volume results
- BladderTraqTM precision and 0–999 mL volume detection*
- Automatically adapts to patient types such as male, female, and small child
- Unique probe design
- Cart adaptable to a variety of clinical set-ups
- Password-protected patient information
- No sonographer required

DURABLE INDUSTRIAL DESIGN
Designed with select chemical resistant housing materials, metal gears, and robust cable design, these devices are defined by reliability.
- Fully sealed probe design which protects sensitive electronics against accidental moisture spills
- Maximized up-time with two replaceable batteries; no console charging required
- Expanded list of cleaners and disinfectants for a variety of hospital requirements

Specifications:
Dimensions (Console)
- Height: 4.92” (12.5 cm)
- Width: 8.49” (22.7 cm)
- Depth: 10.2” (25.9 cm)
- Weight: 3.9 lbs (1.77 kg)
- Screen Resolution: 1280 x 800 pixels

Dimensions (Probe)
- Height: 7.7” (19.6 cm)
- Width: 2.43” (6.2 cm)
- Depth: 2.43” (6.2 cm)
- Weight: 1.28 lbs (0.5 kg)
- Screen Resolution: 144 x 168 pixels

Power
- Input Voltage: 100 to 240 VAC, Single Phase
- Line Frequency: 50 or 60 Hz
- Current: 1.4 max

Battery
- Type: Lithium-ion (Li-ion)
- Charge Time: 2.5 Hours
- Battery Life: More than 24 hours normal operation between charges
- Capacity: 4.6 Ah, 51 Wh
- Nominal Voltage: 11.1v
- Weight: 0.72 lbs (0.3 kg)

Accuracy
- Volume Range: 0 to 999 ml
- Accuracy: Greater than 100 ml: ±7.5%
                 0 to 100 ml: ±7.5 ml

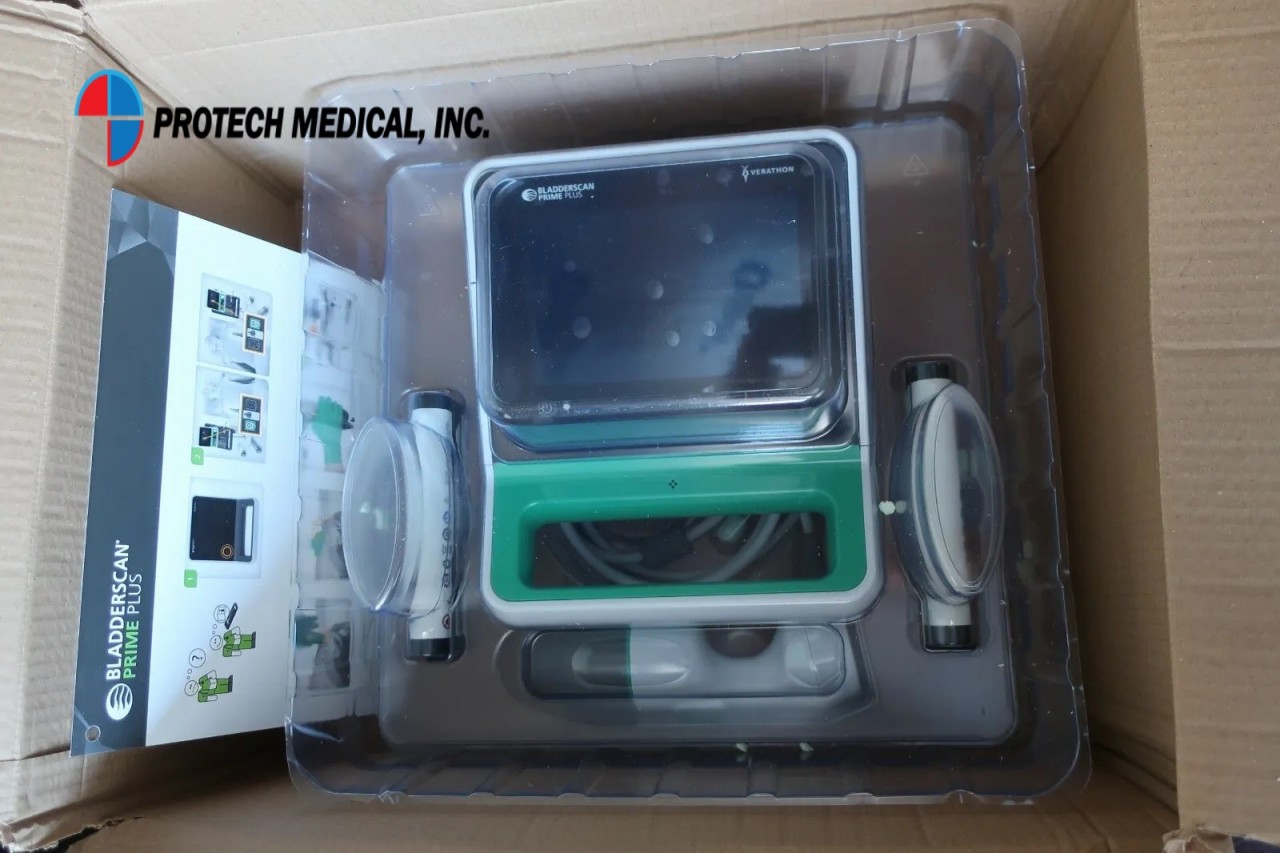

Package includes:
- Verathon BladderScan Prime Plus console
- Ergonomic handheld probe
- Onboard tutorial
- Battery charger
- 2 interchangeable lithium-ion batteries
- Operations and Maintenance Manual (OMM)
- Quick Reference Card
- Mobile Cart
- Warranty Card
