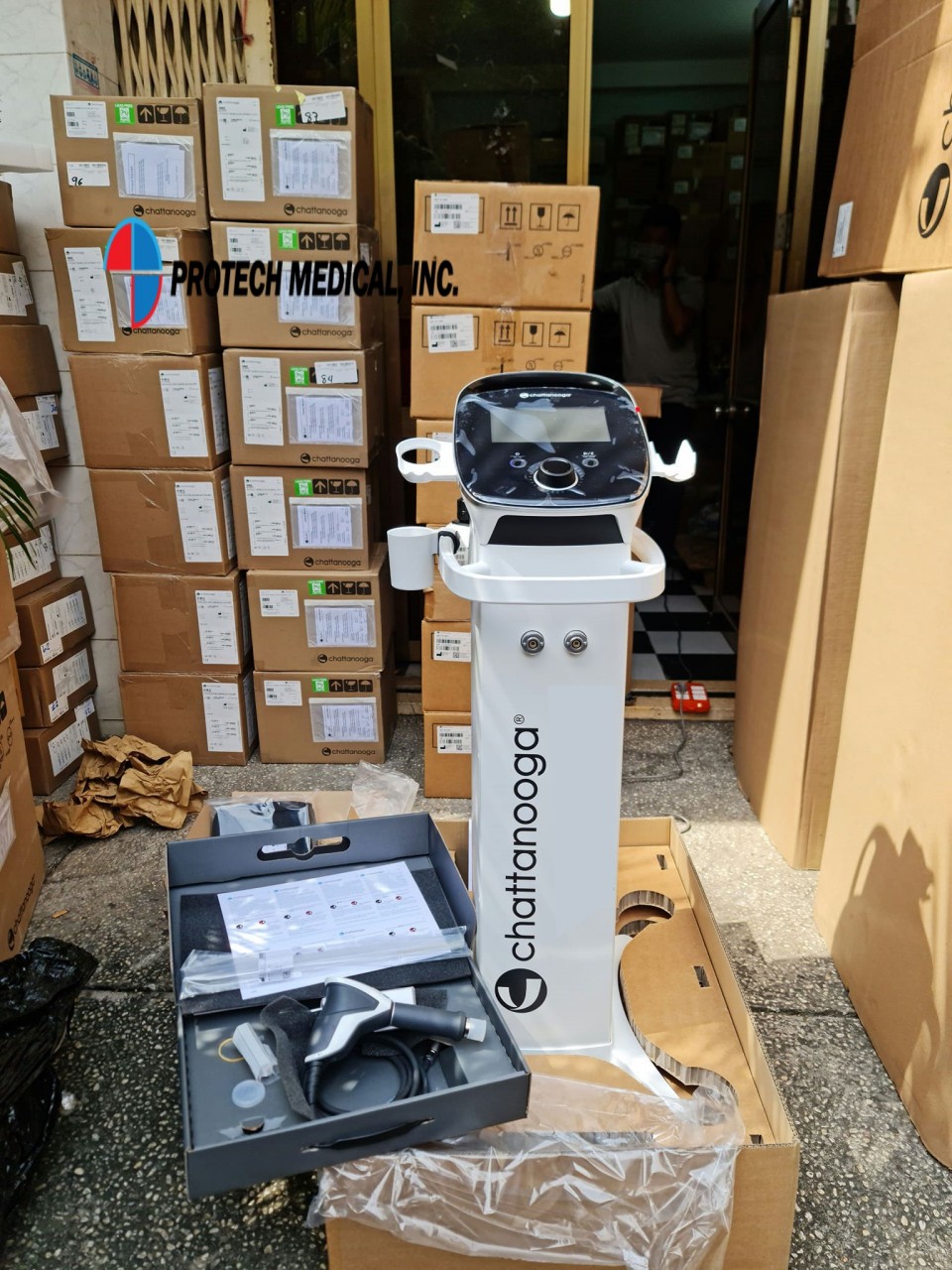

The new Intelect RPW 2 combines streamlined design with ergonomics and patient-comfort with ease-of-use resulting into the most compact clinical unit currently on the market. The Intelect RPW 2 allows for the treatment of indications with radial, pneumatically-generated, low-energy acoustic waves, or ‘pressure pulses’.

The applied pressure pulse propagates radially within the tissue, generating a therapeutic effect. The V-ACTOR HF optional hand piece allows mechanical vibration, for vibration massage.

Indications :
- Achilles Tendinopathy
- Disorders of Tendons Insertions
- Pain & Inflammation in Orthopaedic Conditions
- Plantar Fasciitis
- Pulse Vibration Massage

Recommended treatment guidelines :
- Localize the painful areas you plan to treat
- Select most appropriate transmitters based on treatment goal and targeted tissue
- Apply ultrasound water based gel on the skin overlying the treatment area
- Always start with lower level of intensity
- Perform a post-treatment test to see for better function and decreased in pain

New FALCON Handpiece
- Allowing lower Bar pressures for an increased range of indications and applicators.
- Large graphic color touch screen
- High resolution 7” capacitive touch screen for greater customer experience.
- Suggested protocols library
- Available at a finger click; treatment pictures, anatomical and pathological library, treatments guidelines.
- Comfort mode
- Unique automatic energy ramp up designed to provide better patient comfort.
- V-ACTOR HF
- Vibration frequency up to 50Hz for Vibration therapy and muscle relaxation.
- Large choice of transmitters
- 17 different transmitters available for tendinopathies, trigger points, spine and fascia treatments.
- Easy fit for every treatment room
- Slim design 41x42x110cm (LxWxH), not a lot of space needed for this new RPW generation.
- Ergonomic design
- What you is need close in hand; handpiece, transmitter tray, gel bottle, cables holders, soft pouch.
- Extended pressure range

The Falcon handpiece provides a greater pressure range from 0.3 to 5 bar, making it more comfortable for the patient and allowing Fascia and Spine treatments. NOTE: PERI-V-ACTOR and SPINE-V-ACTOR can only be used under 3 Bar pressure.

Specifications:
- 2174 : 230V AC 50-60Hz 350VA
- DIMENSIONS WXHXD : 410x1100x425mm
- WEIGHT : 30kg
- COMPRESSED AIR OUTPUT : 0.3 - 5.0 bar
- POWER INCREMENT SETTINGS : 0.1 bar
- PULSE AMPLITUDE : Approx 2mm at 3 bar, idling (without coupling)
- PULSE WIDTH : Approx 6-12ms
- PULSE FREQUENCY : FALCON handpiece 1-21Hz for RPW, V-ACTOR handpiece 1-50Hz for vibration
- MODE : Single pulse or continuous- USER INTERFACE : 7 inch, 800x480 pixels color graphic capacitive touch screen
- CONFORMITY : This device complies with the applicable standards EN/IEC 60601-1, CAN/CSA-C22.2 No.601.1, UL Std. No 60601-1.
- CLASSIFICATION ACCORDING TO MDD : class IIa device 93/42 60601-1

Package includes:
- D20-S D-ACTOR 20 mm transmitter
- Ultrasound gel bottle - 250 ml
- Ro40 D-Actor 'Beam' transmitter
- USB Drive Intelect Mobile 2
- FALCON handpiece
- Quick Start Guide Booklet Intelect RPW 2
- Transmitters tray Intelect RPW 2
- Gel bottle support cup Intelect RPW 2
- Intelect RPW 2 Pouch
